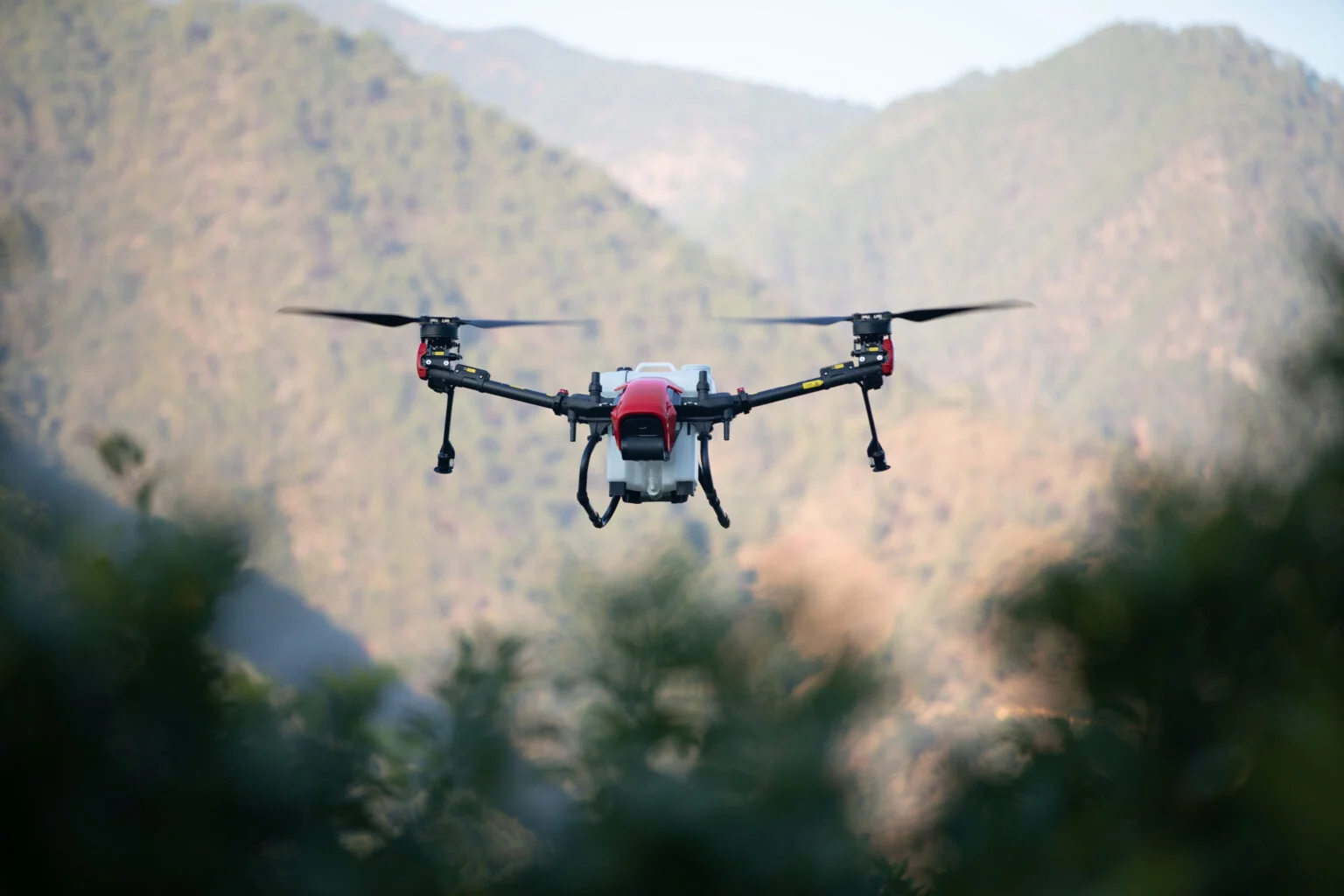

XAG P150 Agricultural Drone
CONTACT FOR PRICE
Lock in the best deal on the XAG P150 Agricultural Drone
Take your farm to the next level with cutting-edge drone technology. The XAG P150 delivers precision and efficiency, featuring an 18.5-gallon capacity and speeds up to 40 mph, so you can cover more acres in less time. Don’t wait—upgrade your farm today!
The XAG P150 is the ultimate agricultural drone designed for spraying, spreading, and field mapping. With a 154 lbs maximum payload, it takes efficiency to the next level, helping you farm more sustainably and optimizing inputs.
Max Flow Rate
64 ac/hr
Spraying Efficiency
Open Field | 7.9 gal/min
Max Payload
154 lbs
Max Flight Speed
40.2 mph
Max Spread Rate
617 lbs per min
Spreading Efficiency
4777 lbs per hr
Modular, Collapsible Design
Hassle-free Transportation and Setup
Real-Time 3D Terrain Mapping
Autonomous Flight without Preloaded Map
Prescription Map
Variable-Rate Application on Demand
XAG RevoSpray4
Unmatched Precision, Unrivaled Performance
With its pioneering intelligent rotary atomization spraying technology, the XAG RevoSpray System delivers effective crop protection in both open fields and orchards. The quad-rotor design of P150 generates strong downdraft, ensuring uniformed coverage on both sides of the leaves. When upgraded to four centrifugal nozzles, 6the P150 can handle the toughest and most challenging scenarios.
Speed 5.6 mph | Spray width 13.1 ft
Application volume up to 52.9 gal/acre
Speed 15.7 mph | Spray width 23.0 ft
Application volume up to 10.9 gal/acre
Flexible impeller pumps with a service life of 300 hours eliminate the need for frequent replacements, making it economical and durable.

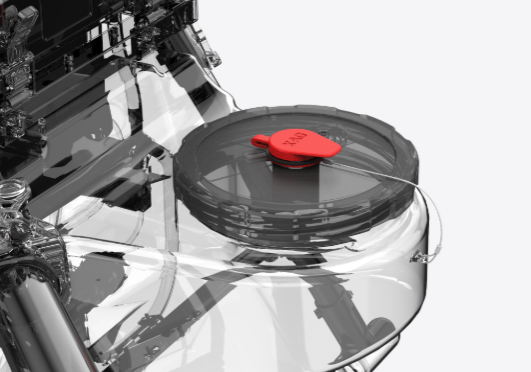

Smart liquid tank with water pressure sensor removes foam interference, achieving precise detection of remaining liquid level.
New centrifugal nozzles enhance the atomizing effect, ensuring uniform spray distribution even at high flow rates.
Liquid filling ports designed with nested caps make liquid refilling easier and more convenient.
XAG RevoCast 4
Even Spreading for Superior Efficiency
When equipped with the XAG RevoCast System, the P150 can spread a 110-pound bag of fertilizer in just 11 seconds. It excels in high-precision spreading tasks and brings exceptional efficiency.
The vertical waving spreader increases downward force to the granules and provides better wind resistance, covering large areas quickly without overlap and missing.
Three types of screw feeders adapt to a range of tasks, from fertilizer spreading, direct seeding to aquacultural feeding and powder scattering.
The large dual-side filling port enable faster and easier refilling.
XAG RealTerra 3
Tap & Map, Ready in a Snap
Mounted with the XAG RealTerra System, the P150 can capture high-definition images during autonomous flights. The images will be automatically stitched into field maps and exported right after landing. Up to 13.3 hectares 15of farmland can be surveyed in a single flight.
One-tap mapping
Quick map export without network
Realistic 3D model planning
XAG SuperX 5 Pro Intelligent Control System
The Super Brain Behind
Powerful processors and state-of-the-art control algorithm propel the P150 to achieve fully autonomous operation with superior performance.
Obstacle Avoidance
The high-performance 4D imaging radar detects obstacles with precision from 1.5 to 100 meters17 along the flight path. It ensures safe operation around the clock without dependence on ambient light.
Real-Time 3D Terrain Mapping
Advanced environment perception enables autonomous flight without preloaded maps, even over hilly terrain. The integrated AI learning feature further enhances efficiency during the flight.
Safe Takeoff/Landing
The lower visual module accurately records terrain features at takeoff and landing points, with automatic hovering triggered by detected anomalies.
Design Highlights
The 60-inch high-performance flapping propellers feature deformation and heat resistance, low noise, and reliable performance in harsh operational conditions.
The flight platform and task systems are separable, allowing for a quick switch between spraying, spreading and mapping as needed.
The foldable arms can reduce the drone's volume by 20%, making transport and storage more convenient.
With IPX6K protection, the entire body can be washed directly with water to remove pesticide residue.
XAG One 6.0
Autonomous Operation at the Touch of a Finger
The optimal route is generated based on the field shape and parameters. The drone will automatically return to home in the event of low liquid or power. You can pause and resume the flight path at any time.
Autonomous operation allows simultaneous control of two drones, enabling concurrency and increased efficiency.
Support selecting up to 10 plots at once to generate routes for continuous operation. The drone automatically flies to the next plot after completing a task, saving time and efforts.
Multiple users can collaborate smoothly by sharing field maps and operational records. This data can be synchronized with the XAG One Management Platform for task coordination.
Using prescription maps, the drone adjusts application rates in-flight, ensuring specific zones receive the precise amount of pesticides, fertilizers or growth regulator as needed.
*Compatible with VRA maps from PIX4Dfields.
Safety Point Mode: Fixed flight paths ensure a safe operation, while adjustable safety points can be customized based on the environment. Safety Zone Mode: The adjustable pre-set safety zone allows the drone to avoid obstacles and optimize in-and-out routes for greater efficiency.

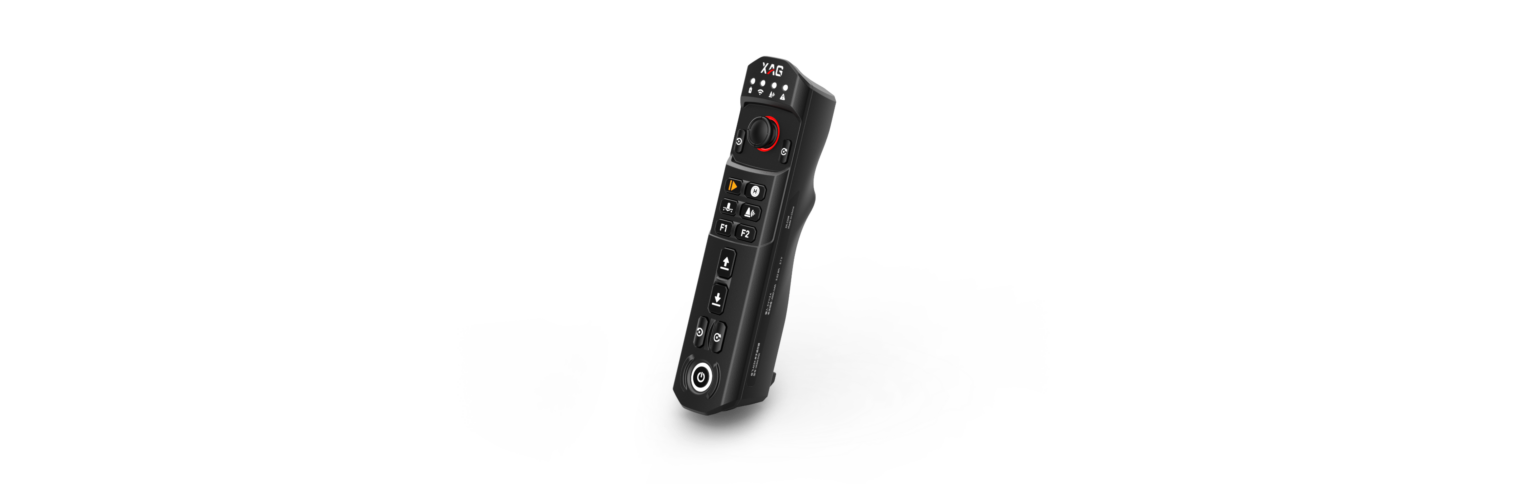

XAG ACS4 Control Stick
Lightweight and Portable, All in One-Hand
Bluetooth Quick Link
Turn on and start using instantly
Safety Lock
Prevent accidental touches for a worry-free experience
One-button Operation
Efficient, effortless, and user-friendly
12-hour Long Endurance
One charge lasts all day
XAG SRC4 Smart Remote Controller
Your Flexible Assistance
6-inch 2K ultra-bright screen with adjustable angle
Control range up to 1.24 miles reduces limitations during offline operations
5 hrs endurance, operating continuously without interruption
Support Wi-Fi networking, ensuring stable flight even in offline environments
The built-in XAG One App enables easy switch between manual and autonomous modes
Work with the downward FPV camera to mark waypoints in flight
No Network? There is a Solution for That
The XAG XRTK6 Pro Mobile Station serves as a portable RTK station and field mapper, enabling autonomous operation without a CORS network. When paired with the XAG DL1 Data Link, it expands communication range and supports real-time video transmission for safer flight.
XAG DL1 Data Link
Farther, Broader, Safer
1.24 Mile Range Wi-Fi Repeating
Reduce obstructions for safer operation
5-Hour Endurance
Built-in 14700 mAh battery
Smartphone Direct Connection
One-tap fully autonomous operation
Swarm Operation Supported
Easily connect two drones with one controller
Compatible with Starlink
Maintain online for seamless CORS operation

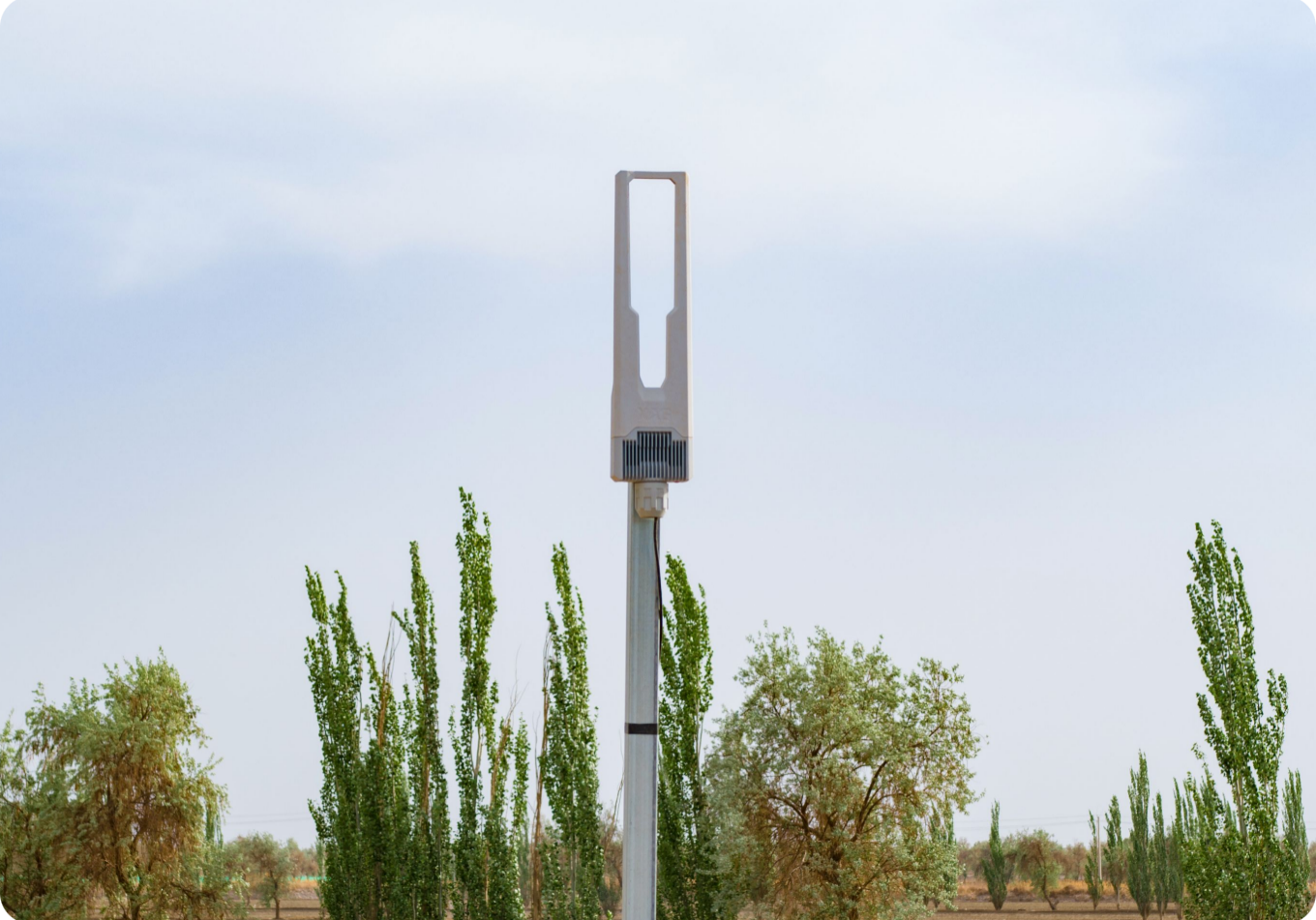

XAG XRTK6 Pro Mobile Station
Precision at Your Service
Portable RTK Station
Activate base station mode with a single button press for accurate drone positioning and navigation
Field Circling and Marking
One operator can mark the field while another controls the drone, streamlining workflow and saving time
.93 Mile Range Wi-Fi Repeating
Expand control range with precision navigation
Satellite Correction (PPP) Supported
Correct field boundaries and station positions offline
Power System
Quick to Charge, Ready on Demand
Charging efficiency is crucial in agricultural operations, where every minute counts. The XAG Smart Supercharge Battery, paired with a fuel-powered charger and the new battery cooling tower, enables an 8-minute rapid charge upon landing.
- 975 Wh capacity
- 1500 cycles 21
- High cell integration for stronger protection
- Tiny water droplets evaporate rapidly, removing heat at an exceptional rate
- One tank of water provides 6-8 hours of operation
- Outstanding fuel efficiency with a compact, portable design
- Equipped with multiple charging protections
- Display working duration and the time for the next fuel change
- 3.4 KW power output
- Compact and portable, weighing only 9.26 lbs
- Fully charge one battery in 11 minutes
- 6.8 KW rated parallel charging power for soaring efficiency
- Charge one battery as fast as 6 minutes
Long-lasting fuel-powered charging for mobile, convenient use
AC Charging as a more economical choice
